Product picture |
PartNumber |
Describe & Features
请选择
请选择
10A, 4mΩ Load Switch with Rise Time ADJ
4A Switch with RCB
5.5V, 2.2A, 40mΩ, Ultra-Low IQ
5.5V, 3A, TRCB, Auto Discharge
5.5V, 6A, RCB, Ultra-Low Ron
6CH Load Switch with I2C Control
6V, 3A, 23mΩ, TRCB
6V, 3A, 33mΩ, TRCB
6V, 3A, TRCB, Auto Discharge
6V, 6A, TRCB, Ultra-Low Ron
Dual 6A Load Switch
Low Input Quick Rise 6A Switch
|
Channel
请选择
请选择
1
2
6
|
VIN (V)
请选择
请选择
1.0~5.5
1.2~5.5
1.5~6.0
2.2~6.0
2.3~5.5
VBIAS 2.5~5.7 VIN 0.6~VBIAS
VBIAS 3~5.5 VIN 0.8~3.5
VBIAS1.5~5.5 VIN 0.1~5.5
|
IQ (μA)
请选择
请选择
0.5
8
22
≤1
≤1.2
≤11
|
IOFF (μA)
请选择
请选择
0.1
0.15
≤0.4
≤1
≤2.3
|
RON (mΩ)
请选择
请选择
4
4.8
5.2
6
17
18
23
33
35
40
52
75
|
IOUT_MAX (A)
请选择
请选择
2.0×6CH
2.2
3
3.5
4
6
10
|
EN Logic
请选择
请选择
H
L
|
RCB
请选择
请选择
No
Yes
|
Fault Flag
请选择
请选择
No
Yes
|
Package
请选择
请选择
CSP16(0.35 pitch)
DFN14L(3mm×2mm)
DFN4(1.2mmx1.6mm)
DFN8(3mm×3mm)
FCQFN4(1mmx1mm)
WLCSP12(0.4 Pitch)
WLCSP4(0.4 Pitch)
WLCSP4(0.5 Pitch)
WLCSP6(0.5 Pitch)
WQFN10(1.5mm×2.0mm)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ET3166 | 6CH Load Switch with I2C Control | 6 | 1.2~5.5 | ≤1 | ≤1 | 52 | 2.0×6CH | H | Yes | No | CSP16(0.35 pitch) |
|
ET3140 | 5.5V, 2.2A, 40mΩ, Ultra-Low IQ | 1 | 1.2~5.5 | 0.5 | 0.1 | 40 | 2.2 | H | No | No | FCQFN4(1mmx1mm) |
|

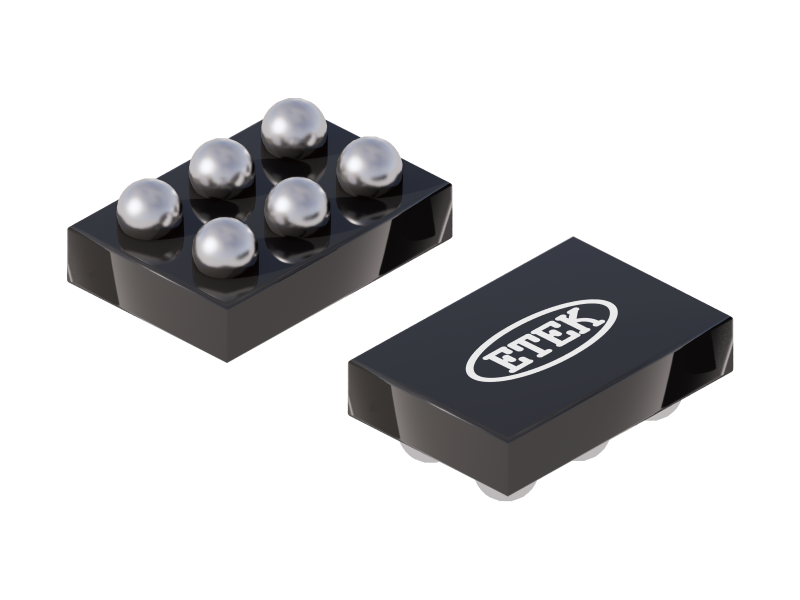

ET3565 | 4A Switch with RCB | 1 | 1.0~5.5 | 0.5 | 0.15 | 17 | 4 | H | Yes | No | WLCSP6(0.5 Pitch) |
|
ET3562 | 5.5V, 3A, TRCB, Auto Discharge | 1 | 1.0~5.5 | 0.5 | 0.1 | 35 | 3 | H | Yes | No | WLCSP4(0.5 Pitch) |
|

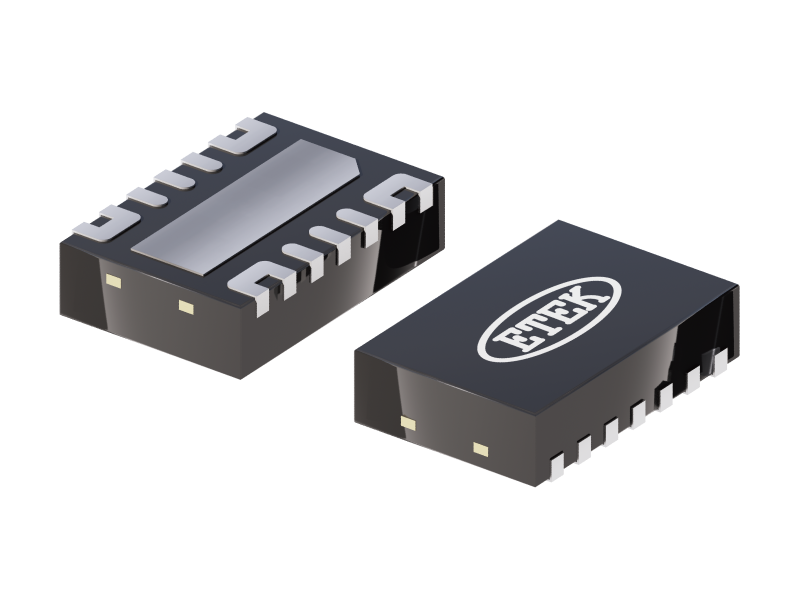

ET3176 | Dual 6A Load Switch | 2 | VBIAS 2.5~5.7 VIN 0.6~VBIAS | 22 | ≤2.3 | 18 | 6 | H | No | No | DFN14L(3mm×2mm) |
|
ET3164 | 10A, 4mΩ Load Switch with Rise Time ADJ | 1 | VBIAS1.5~5.5 VIN 0.1~5.5 | 8 | 0.1 | 5.2 | 10 | H | No | Yes | WQFN10(1.5mm×2.0mm) |
|
ET3161 | Low Input Quick Rise 6A Switch | 1 | VBIAS 3~5.5 VIN 0.8~3.5 | ≤1 | ≤0.4 | 4.8 | 6 | H | No | No | DFN8(3mm×3mm) |
|
ET3159 | 6V, 3A, TRCB, Auto Discharge | 1 | 1.5~6.0 | 8 | ≤1 | 75 | 3 | H | Yes | No | DFN4(1.2mmx1.6mm) |
|

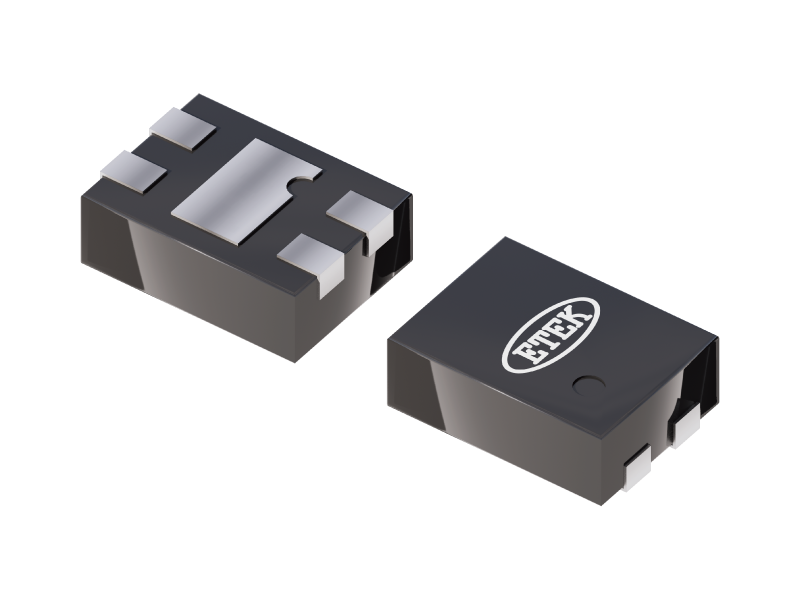

ET3158A | 6V, 3A, 33mΩ, TRCB | 1 | 1.5~6.0 | 8 | ≤1 | 33 | 3 | H | Yes | No | DFN4(1.2mmx1.6mm) |
|
ET3153 | 5.5V, 6A, RCB, Ultra-Low Ron | 1 | 2.3~5.5 | ≤1 | ≤1 | 6 | 6 | L | Yes | No | WLCSP12(0.4 Pitch) |
|

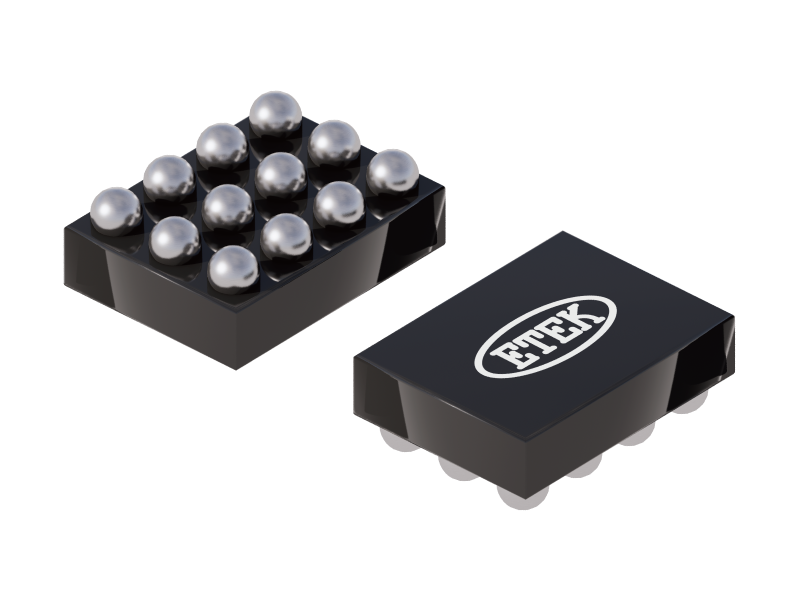

ET3152 | 6V, 6A, TRCB, Ultra-Low Ron | 1 | 2.2~6.0 | ≤1.2 | ≤1 | 4 | 6 | H | Yes | Yes | WLCSP12(0.4 Pitch) |
|
ET3148A | 6V, 3A, 23mΩ, TRCB | 1 | 1.5~6.0 | ≤11 | ≤1 | 23 | 3.5 | H | Yes | No | WLCSP6(0.5 Pitch) |
|
ET3138 | 5.5V, 2.2A, 40mΩ, Ultra-Low IQ | 1 | 1.2~5.5 | 0.5 | 0.1 | 40 | 2.2 | H | No | No | WLCSP4(0.4 Pitch) |
|
ET3137 | 5.5V, 2.2A, 40mΩ, Ultra-Low IQ | 1 | 1.2~5.5 | 0.5 | 0.1 | 40 | 2.2 | L | No | No | WLCSP4(0.4 Pitch) |
